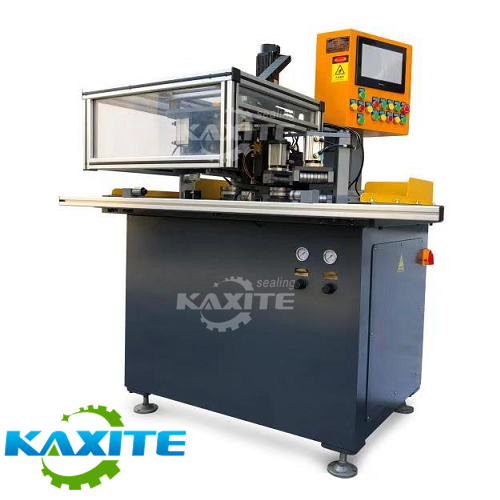

Full Automatic Camprofile Grooving Gasket Making Machine is used for making camprofile gasket, Full Automatic Camprofile Gasket Making Machine is a Professional sealing equipment to allow you to reduce the manufacturing time and very easy to operate with PLC. Can produce large-diameter gaskets such as camprofile, serrated gasket., the machine process starts from a primitive round flat metallic ring, spindled horizontally and machined by a cutting tool which removes material from the ring itself
Full Automatic Camprofile Grooving Gasket Making Machine is used for making camprofile gasket, Full Automatic Camprofile Grooving Gasket Making Machine is a Professional sealing equipment to allow you to reduce the manufacturing time and very easy to operate with PLC. Can produce large-diameter gaskets such as camprofile, serrated gasket., the machine process starts from a primitive round flat metallic ring, spindled horizontally and machined by a cutting tool which removes material from the ring itself. It also can Inner Ring Beveling and Outer Ring Grooving for Spiral wound gasket and other advanced functions.
Power: 380AV, 5KW , L x W x H = 95x 150 x 160cm , N.W.: appr. 850KGS , Thickness2-4mm.
Working life
80,000 Hours
Weight
850kg
Color
Blue
power
5kw
Gasket nominal thickness
2-4mm
Voltage
380/220V
Metal Ring width
90mm
Warranty
2 years
Repeatability of outer diameter
+/-0.2mm
MOQ
1 Piece
Inverter
HOLIP 2.2kW
Dimension
95*150*160cm
More information for sealing machine ,please contact with KAXITE sealing co.
