Virgin Pure PTFE Teflon Flat Full Face Raised Face Gasket With Bolt Holes
Specifications
ptfe teflon gasket seal
pure material made
Kaxite PTFE -based gasket materials are able to withstand significantly more aggressive chemical environments (including highly oxidizing environments) than standard non-asbestos gasket materials. However their temperature, pressure and mechanical performance are inferior to standard non-asbestos gasket materials. Metal inserted and expanded PTFE are able to operate at higher pressures

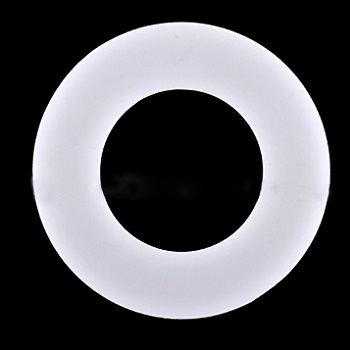

Virgin PTFE Flat Gasket
Made of pure virginal PTFE, GINSEAL PTFE gasket is a cost-favorable
Alternative for use with low mechanical stress and low pressure-temperature load. The gasket is highly resistant to practically all chemicals except for fluorine, halogen oxides, molten and dissolved alkali metals.
It is available as a plate and die-cut gasket as per DIN EN 1514-1 and in other usual dimensions as well as in special-purpose dimensions.
Recommended continuous operating temperature: Max. 150 ° C
Operating pressure: Max. 6 bars
PTFE Flat Gasket with Glass fiber
A compound consisting of modified, hence cold flow reduced PTFE with
A glass fiber fraction of 25%.
Pressure / temperature: PN 16 / 150 ° C
Attention! Consider pressure-temperature dependence
Use: Steel flange, steel container
