Full Automatic Ring Bending Machine for Spiral Wound Gasket Inner and Outer Ring is used for making spiral wound gasket Inner ring and outer ring, the Spiral wound gasket ring width scope is 6-50 mm. Full Automatic Ring Bending Machine for Spiral Wound Gasket Inner and Outer Ring is made very Automatic and easy to operate, equipped with domestic mature PLC with automatic calculation function which control servo motor to supply high torque and high precision, high precision low differential planetary gear reducer which provides more accuracy on size of bending ring, and automatic cutting device, so that we can get full automatic efficiency and material utilization can be increased to about 99%

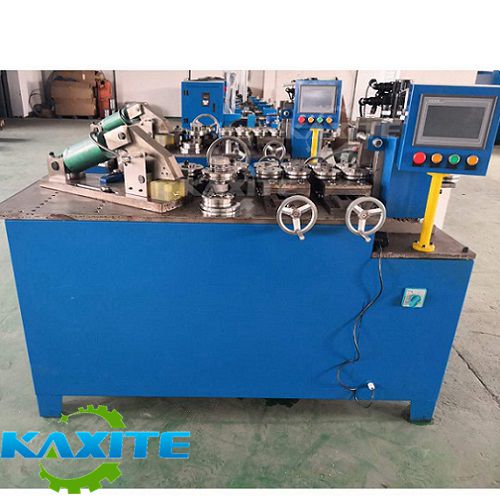

Full Automatic Ring Bending Machine for Spiral Wound Gasket Inner and Outer Ring
Full Automatic Ring Bending Machine for Spiral Wound Gasket Inner and Outer Ring is used for making spiral wound gasket Inner ring and outer ring, the Spiral wound gasket ring width scope is 6-50 mm. Full Automatic Ring Bending Machine for Spiral Wound Gasket Inner and Outer Ring is made very Automatic and easy to operate, equipped with domestic mature PLC with automatic calculation function which control servo motor to supply high torque and high precision, high precision low differential planetary gear reducer which provides more accuracy on size of bending ring, and automatic cutting device, so that we can get full automatic efficiency and material utilization can be increased to about 99%
Power: 380AV, 50HZ, 8.5KW , L x W x H = 340 x 95 x 1122m , N.W.: appr. 1500KGS , Work Range: ID150 ~ 3000mm.
Working life
80,000 Hours
Weight
1500kg
Color
Blue
power
8.5kw
Gasket nominal thickness
3.2mm or 4.5mm
Voltage
380/220V
Maximum Outer Diameter
3000mm
Warranty
2 years
Minmum inner Diameter
150mm
Air Pressure
6-8BAR
Repeatability of outer diameter
+/-0.2mm
MOQ
1 Piece
Rotational Speed
0-200rpm
Dimension
340*95*122cm
More information for sealing machine , please contact with KAXITE sealing co.
