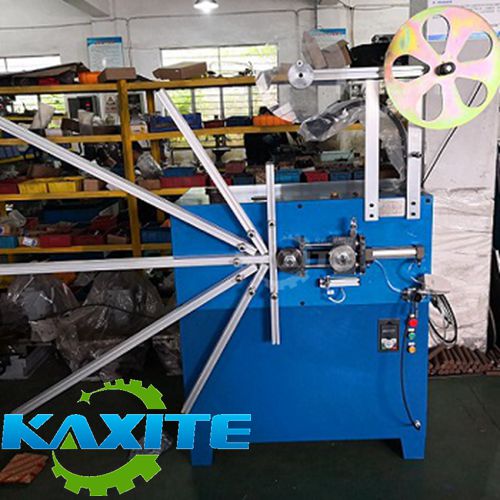

Medium Size Winder machine for making spiral wound gasket is used for making spiral wound gasket Diameter size from φ150-φ1500 mm, the machine can produce spiral wound gasket with inner ring or without inner ring. Drive system in maintenance-free mode. It can produce different size spiral wound gasket when Speed adopts frequency conversion speed regulation
Power: 380AV, 0.4KW , L x W x H = 115 x 76 x 130cm , N.W.: appr. 600KGS , Work Range: ID300 ~ 2500mm,Thickness: 4.5mm, Other thickness3.2mm on request .
Working life
80,000 Hours
Weight
210kg
Color
Blue
power
0.4kw
Gasket nominal thickness
3.2mm or 4.5mm
Voltage
380/220V
Maximum Outer Diameter
1500mm
Warranty
2 years
Minmum inner Diameter
150mm
Air Pressure
6-8BAR
Repeatability of outer diameter
+/-0.2mm
MOQ
1 Piece
Rotational Speed
0-200rpm
Dimension
115*76*130cm
