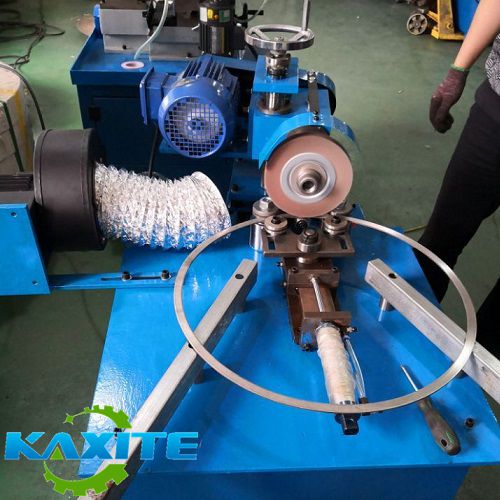

Polishing Machine For Spiral Wound Gasket Metal Ring is used for polishing spiral wound gasket Inner and Outer ring , it is a high efficiency polishing machine, whose polishing roller rise and fall automatically, wide products can be processed, stepless speed is available to ring move, high speed polishing roller output big power, surface of ring is shine and clean.
Polishing Machine For Spiral Wound Gasket Metal Ring
Polishing Machine For Spiral Wound Gasket Metal Ring is used for polishing spiral wound gasket Inner and Outer ring , it is a high efficiency polishing machine, whose polishing roller rise and fall automatically, wide products can be processed, stepless speed is available to ring move, high speed polishing roller output big power, surface of ring is shine and clean.
Power: 380AV, 2KW , L x W x H = 105 x 70 x 105cm , N.W.: appr. 230KGS , Work Range: ID150 ~ 3000mm,Thickness: 4.5mm, Other thickness 3.2mm on request
Working life
80,000 Hours
Weight
230kg
Color
Blue
power
2kw
Gasket nominal thickness
3.2mm or 4.5mm
Voltage
380/220V
Maximum Outer Diameter
3000mm
Warranty
2 years
Minmum inner Diameter
150mm
Air Pressure
6-8BAR
Repeatability of outer diameter
+/-0.2mm
MOQ
1 Piece
Rotational Speed
0-200rpm
Dimension
105*70*105cm
More information for sealing machine ,please contact with KAXITE sealing co.
