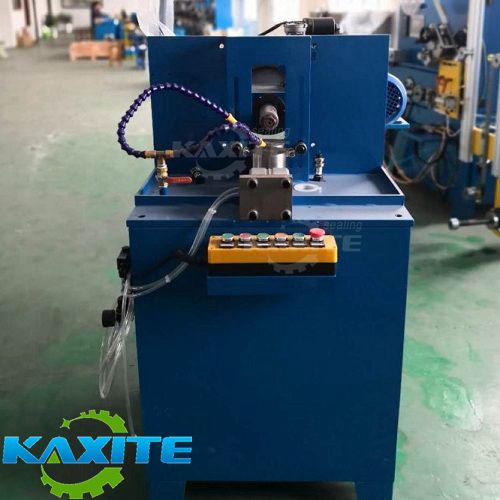

Spiral Wound Gasket Outer Ring Grooving Machine is used for machining spiral wound gasket Outer ring , Spiral Wound Gasket Outer Ring Grooving Machine is used for 90° milling processing at the inner circumference of the outer ring of Φ150 or above. The pressure roller device is pneumatically controlled, and the pressure adjustment range is large, and the operation is simple. The feed adopts electronic stepless speed change to meet the processing needs of different materials.
Spiral Wound Gasket Outer Ring Grooving Machine is used for machining spiral wound gasket Outer ring , Spiral Wound Gasket Outer Ring Grooving Machine is used for 90° milling processing at the inner circumference of the outer ring of Φ150 or above. The pressure roller device is pneumatically controlled, and the pressure adjustment range is large, and the operation is simple. The feed adopts electronic stepless speed change to meet the processing needs of different materials.
Power: 380AV, 0.88KW , L x W x H = 117 x 87x 1155cm , Work Range: ID150 ~400mm,Thickness: 4.5mm, Other thickness 3.2mm on request
Working life
80,000 Hours
Weight
300kg
Color
Blue
power
2.2kw
Gasket nominal thickness
3.2mm or 4.5mm
Voltage
380/220V
Maximum Outer Diameter
4000mm
Warranty
2 years
Minmum inner Diameter
150mm
Air Pressure
6-8BAR
Repeatability of outer diameter
+/-0.2mm
MOQ
1 Piece
Rotational Speed
0-200rpm
Dimension
117*87*155cm
More information for sealing machine ,please contact with KAXITE sealing co.
